Description
The Wait Is Over!

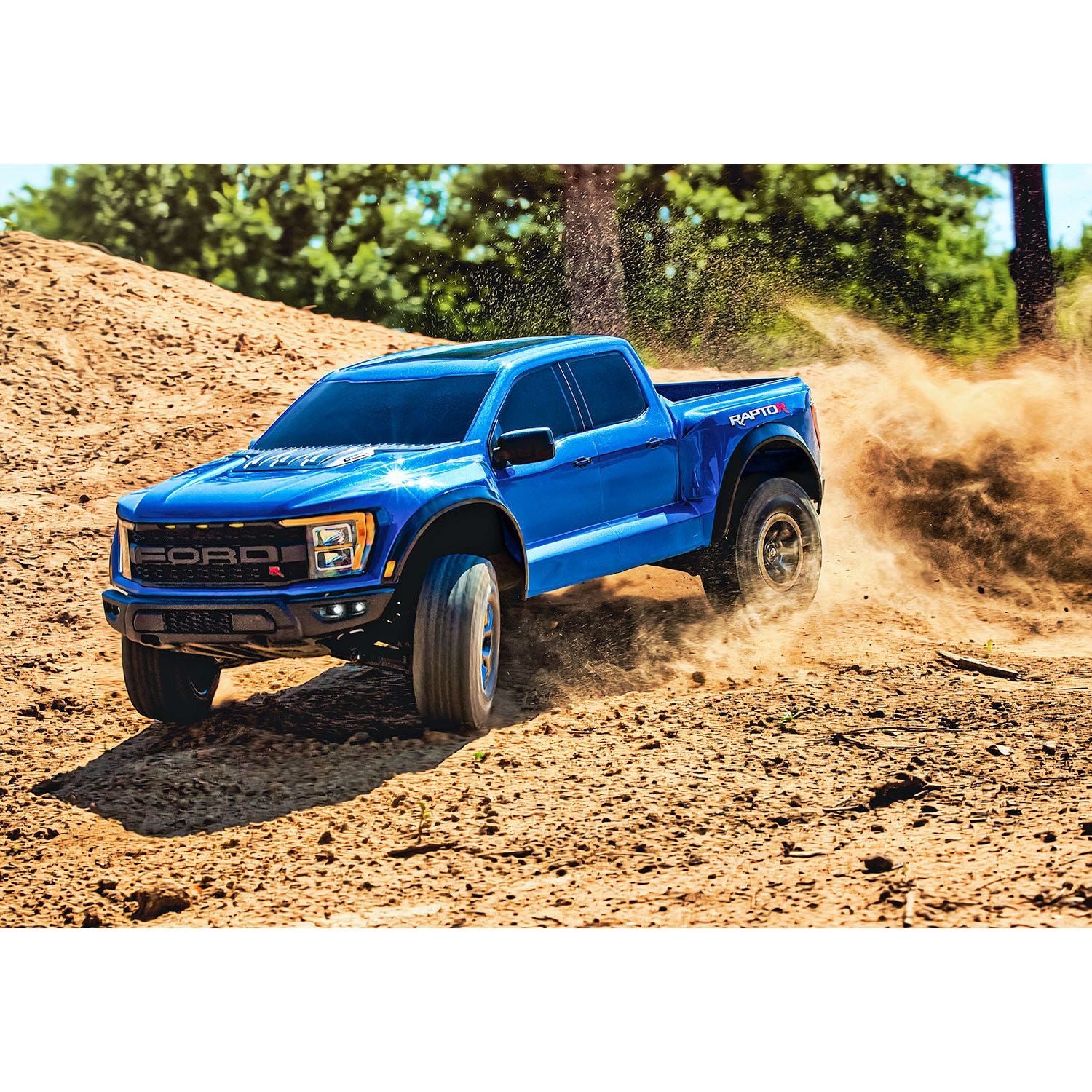

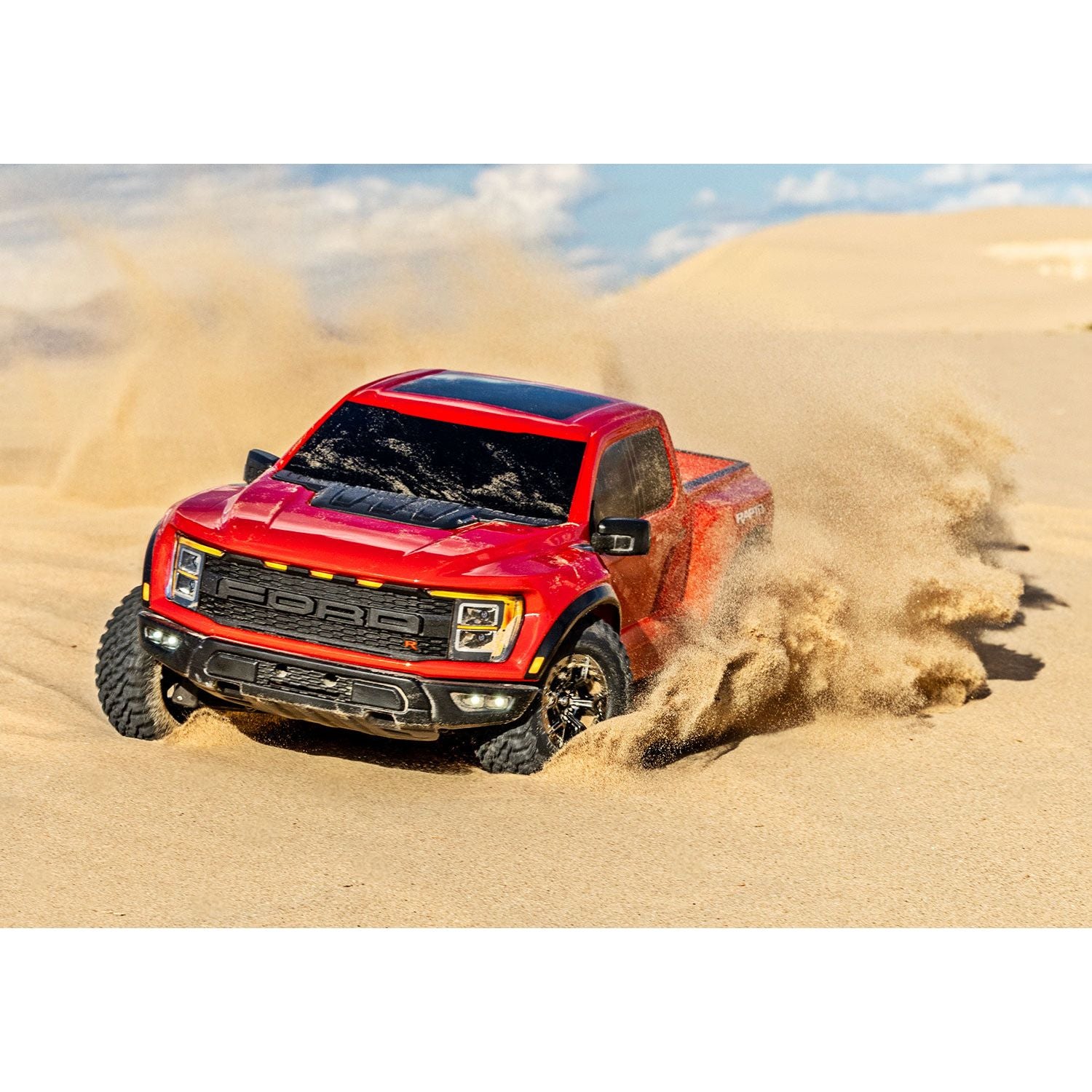

The highly anticipated Ford® F-150® Raptor R™ with its monster 700 horsepower V8, performance suspension, and 37” off-road tires has finally arrived! The Traxxas Raptor R captures the realism in 1/10 scale on an extended Slash® 4X4 chassis and 60+ mph extreme Velineon® Brushless power. Raptor R is the newest member of the Traxxas Pro Scale® family that combines show-stopping fully licensed realism with next level power, performance, and durability.
The Traxxas Raptor R is the newest member of the innovative Traxxas Pro Scale lineup. Superb scale detail and proportion combine with 4X4 traction and extreme Velineon brushless horsepower to faithfully capture the Raptor R driving experience. Only Traxxas Pro Scale delivers both the exacting realism and unbeatable speed and durability performance drivers demand.
Only Traxxas Pro Scale combines pro-level performance with the look and feel of a real Ford Raptor R. The Traxxas Raptor R stops the show with a Ford-licensed body and molded replica parts for maximum scale authenticity. Velineon brushless horsepower and an extreme heavy duty 4WD driveline give Raptor R performance credentials to match its stunning looks.
The Extreme Heavy Duty Upgrade Kit comes pre-installed on Raptor R to withstand the brutal punishment of high-power brushless systems. Made from our toughest cold-weather material, Raptor R’s driveshafts and suspension components are beefed up with extra material and overbuilt construction to form a nearly indestructible driveline.
High-flying stunts and 60+mph desert speed runs won’t upset Raptor R’s tough clipless body. Locking tabs hold the body tightly, but release in just seconds to access the chassis. Raptor R’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.
Specifications
Length: 24.98 inches (637mm)
Front Track: 11.63 inches (289mm)
Rear Track: 11.63 inches (289mm)
Ground Clearance: 1.38 inches (35mm) 2.05 inches (52mm) (center)
Weight (no battery): 6.05 pounds (2.74kgs)
Height (overall): 8.91 inches (226mm)
Wheelbase: 15.11 inches (384mm)
Shock Length (front): 3.45in (88mm) - Long
Shock Length (rear): 3.98in (101mm) - XX-Long
Tire Diameter: 4.5 x 1.9 inches (114mm x 48mm)
Wheel Diameter: 2.2 inches (56mm) (inner) 3.0 inches (76mm) (outer)
Speed Control: Velineon VXL-3s (#3355R)
Motor (electric): 3500KV Velineon Brushless
Overall Drive Ratio: 37/13 ring/pinion gear ratio
Differential Type: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32
Chassis Structure/Material: Composite tub
Drive System: Shaft-driven 4WD
Steering: Dual-bellcrank with integrated servo saver
Tires: Licensed BFGoodrich All-Terrain T/A KO2 2.2″ pre-glued with foam inserts
Tire Diameter: 4.31 inches (114 mm) (front and rear)
Wheels (front/rear): Licensed 2.2″ Ford Factory option wheel
Wheel Diameter: 2.2 inches (56 mm) outer 3.0 inches (76 mm) inner
Radio System: 2-Channel, TQi 2.4GHz Transmitter with TSM receiver
Servo: 2075 Waterproof Digital Servo (125oz-in torque)
Top Speed: 60+ MPH with optional included gearing and 3s LiPo
Skill Level: 1
Battery Compartment (L/W/H): 165mm (6.49″) x 50mm (1.95″) x 23/26mm (1.02″/0.90″)
Required Batteries: 4 “AA” (transmitter), Vehicle battery*
*Can take the following batteries (sold separately)

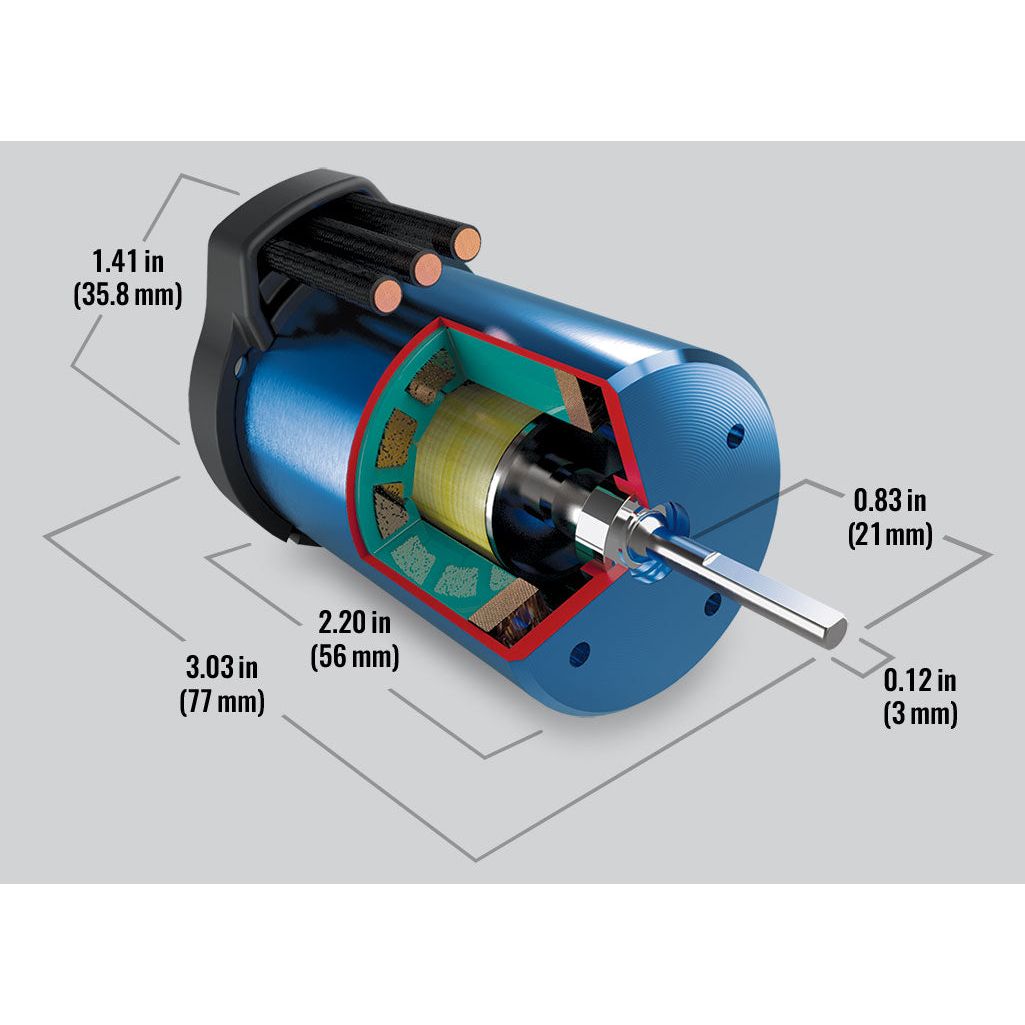

Motor Specs
Type: Velineon 3500kV sensorless brushless
Weight: 9.24oz (262g)
Length: 2.20 inches (56mm)
Diameter: 1.41 inches (36mm)
Connector Type: 3.5mm bullet

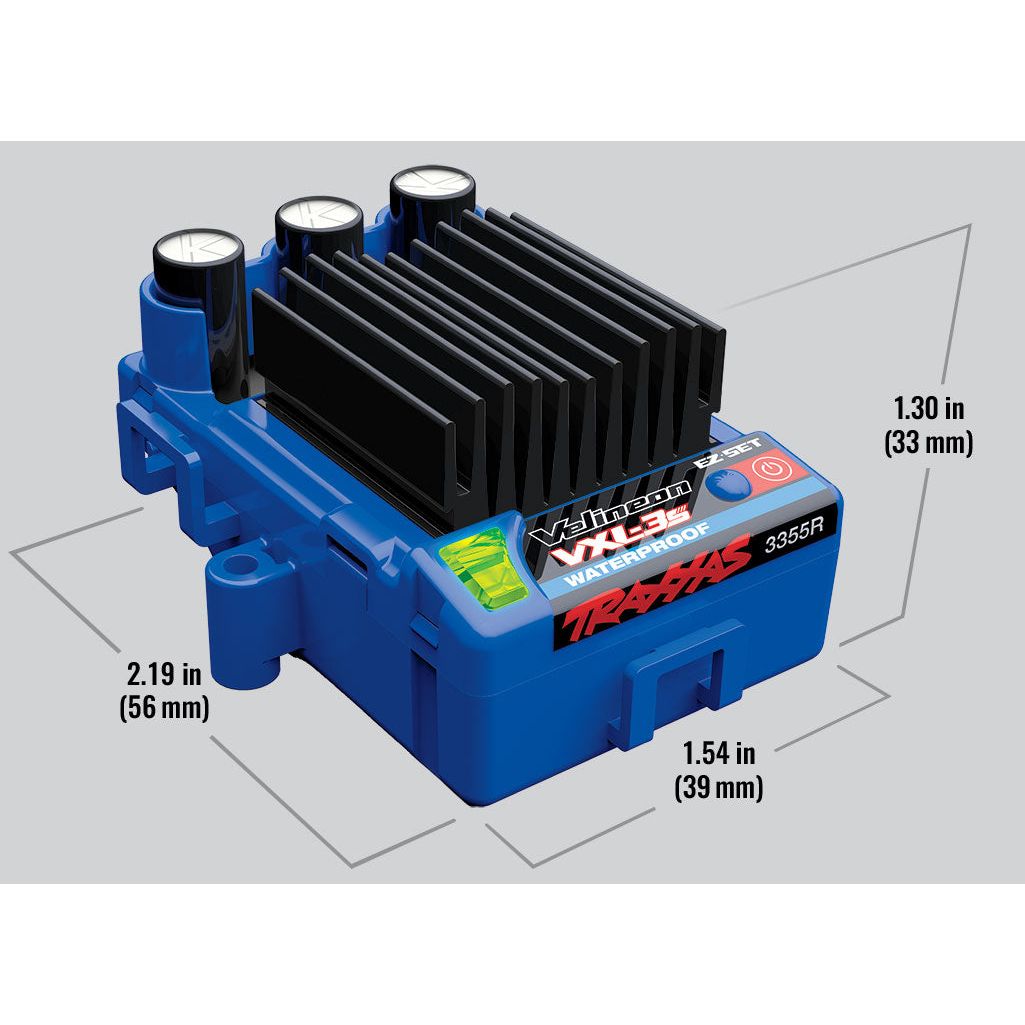

ESC Specs
Input Voltage (cells): 4.8 – 11.1V (4–9 cells NiMH), 2S–3S LiPo
Case Size: 2.19” (56mm) x 1.54” (39mm) x 1.3” (33mm)
Weight: 3.84oz (109g)
BEC Voltage: 6.0 V
Reverse Delay: Yes, with lockout
Thermal Protection: Two-stage thermal shutdown
Ports: Auxiliary fan
Features
-

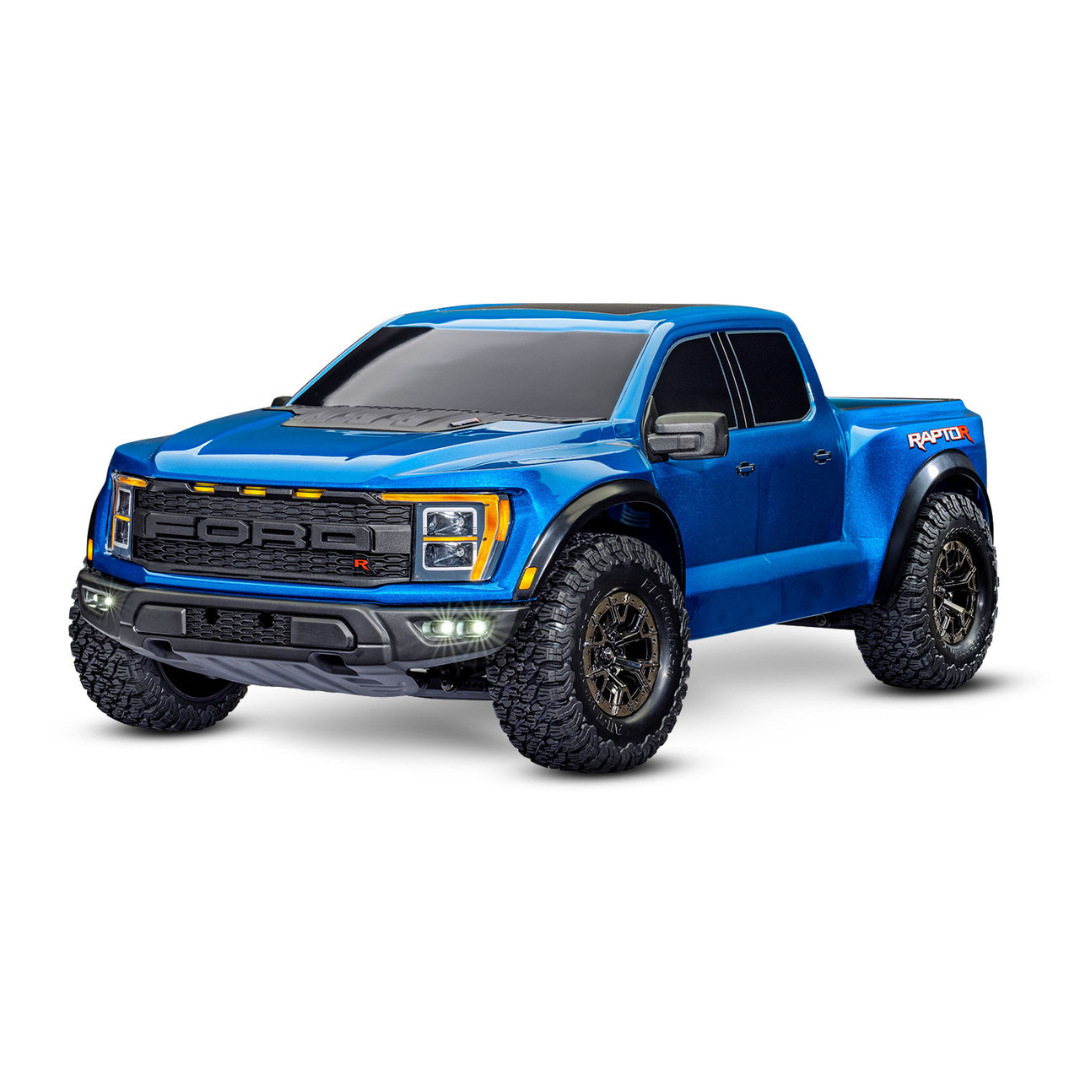

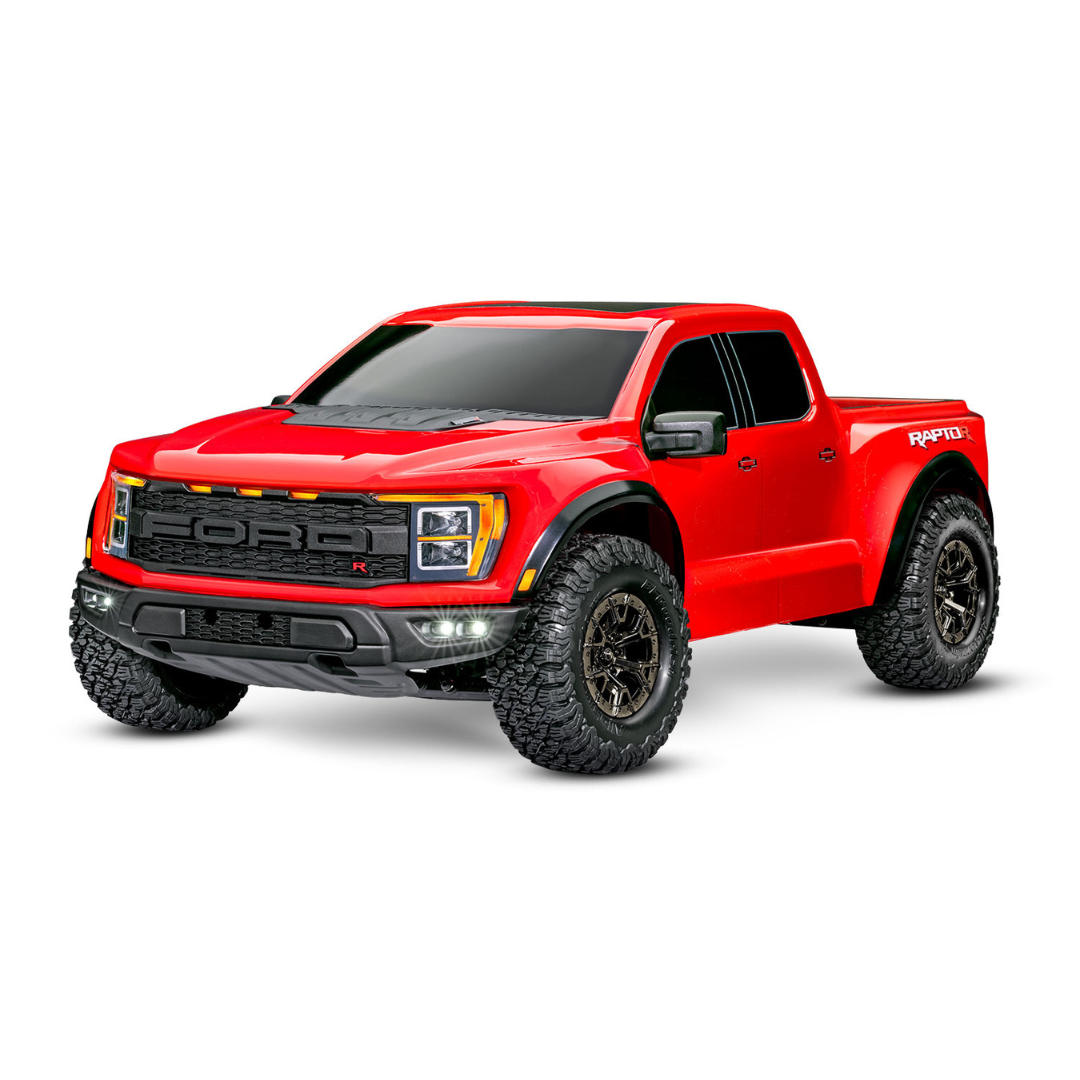

Officially Licensed Ford F-150 Raptor R Clipless Pro Scale Body
-
Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
-
LED lighting in front and rear bumpers
-
Body reinforcements to prevent pull-through damage
-
Clipless Body Mounting
-
Holds tight for intense action
-
5mm output shaft
-
Quick and easy removal
-
Smooth appearance with no body posts or clips
-
Extreme Heavy Duty Upgrade Kit Installed
-
Made from our toughest cold-weather resistant composite
-
Strengthened C-hubs, axle carriers, steering blocks, and shock towers
-
Extreme heavy duty driveshafts
-
Oversize diameter
-
6mm axles
-
Steel wheel hexes
-
VXL-3s Waterproof Electronic Speed Control
-
Cooling fan with large heat sink
-
Three Programmable Drive Profiles
-
Sport Mode - Forward / Brake / Reverse
-
Race Mode - Forward / Brake
-
Training Mode - 50% Forward / Brake / 50% Reverse (patented)
-
Traxxas EZ-Set one-button setup
-
Built-in two-stage low-voltage detection for LiPo batteries
-
NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
-
LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
-
Up to 60+ mph with 3s LiPo battery
-
Traxxas Stability Management (TSM)
-
Improves straight line acceleration and braking on low-traction surfaces
-
Maintains steering composure to allow throttle-on powerslides
-
Never dulls throttle or slows the truck
-
Adjusts from off to 100% assistance from the transmitter
-
TQi 2.4GHz High Output Radio System
-
TQi 2-channel transmitter
-
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
-
Programmable multi-function knob
-
Adjustable steering and throttle percentage (dual rates)
-
Adjustable steering and throttle sensitivity (exponential)
-
Adjustable steering and throttle end points
-
High 13ms frame rate and near-zero latency for responsive control
-
5-channel micro receiver (#6533) with fail-safe security
-
Patented waterproof receiver box with easy-access plug
-
Suspension
-
Heavy duty suspension arms
-
Adjustable 4 mm steel toe and camber links
-
Oil-filled Ultra Shocks
-
White powder-coated progressive springs
-
Velineon 3500 kV Brushless Motor
-
Ultra high-temperature sintered Neodymium magnets
-
Optimized for power and efficiency in 1/10th scale vehicles
-
Efficient, high-speed ball bearings
-
Precision-balanced rotor
-
3500 kV
-
Brilliant blue-anodized finish
-
Chassis
-
Extended modular composite tub design
-
Secure battery hold-down latch
-
Side nerf bars for impact resistance
-
Steering
-
Chassis-mounted #2075 servo
-
Dual bellcrank design with integrated servo saver
-
Drivetrain
-
Full-time shaft-driven 4-wheel drive
-
Oil-filled steel gear front and rear differentials
-
Large 32-pitch steel spur gear
-
Anodized-aluminum center driveshaft
-
Wheels and Tires
-
Licensed Ford replica option wheels
-
2″ outer diameter, 3″ inner diameter
-
Licensed BFGoodrich All-Terrain T/A KO2 tires
-
Larger 114 mm diameter
-
Sealed Ball Bearings
-
Hex hardware with Rust-Resistant Black Oxide Coating
MODEL 101076-4
Ford F-150 Raptor R: 1/10 scale 4X4 short course truck, fully-assembled, waterproof electronics, Ready-To-Race, with TQi 2.4 GHz 2-channel radio system, Traxxas Stability Management, VXL-3s speed control, and clipless painted Pro Scale body.
Requires: battery and charger:
What’s In The Box:
Raptor R with Velineon VXL-3s ESC and 3500 kV motor
Quick Start Guide
TQi 2.4 GHz radio system
High quality maintenance tools
What You’ll Need:
Batteries: Raptor R requires a single NiMH or LiPo battery. See full list of batteries.
Charger
Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
