Description

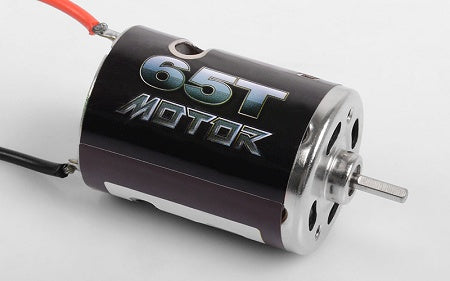

This is an RC4WD 540-Size 65T Brushed Motor for Rock Crawlers. Custom made to fit all popular Truck such as the Bully, AX10, and Trail Finder!
Features:
- Custom made 540 steel case
- Chrome plated case
- Build in capacitor for minimizing glitch
- High torque magnet and rotor
- Small footprint (50mm long)
- Tuned for rock climbing and Scale driving
- Polished bushings
Specs:
Body OD: 1.39in / 35.5mm
Output Shaft Length: 0.43in / 11mm
Output Shaft: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V
(At no load) RPM @ 7.2V: 7000 (±10%), .45Amp Current
(Max Efficiency) RPM @ 7.2V: 5900 (±10%), 1.38Amp Current
Designed Operating temperature Range: -30°C to +80°C
Motor End play: .50mm max
Noise level: < 60db
Includes:
1x RC4WD 540 Crawler Brushed Motor (65T)
