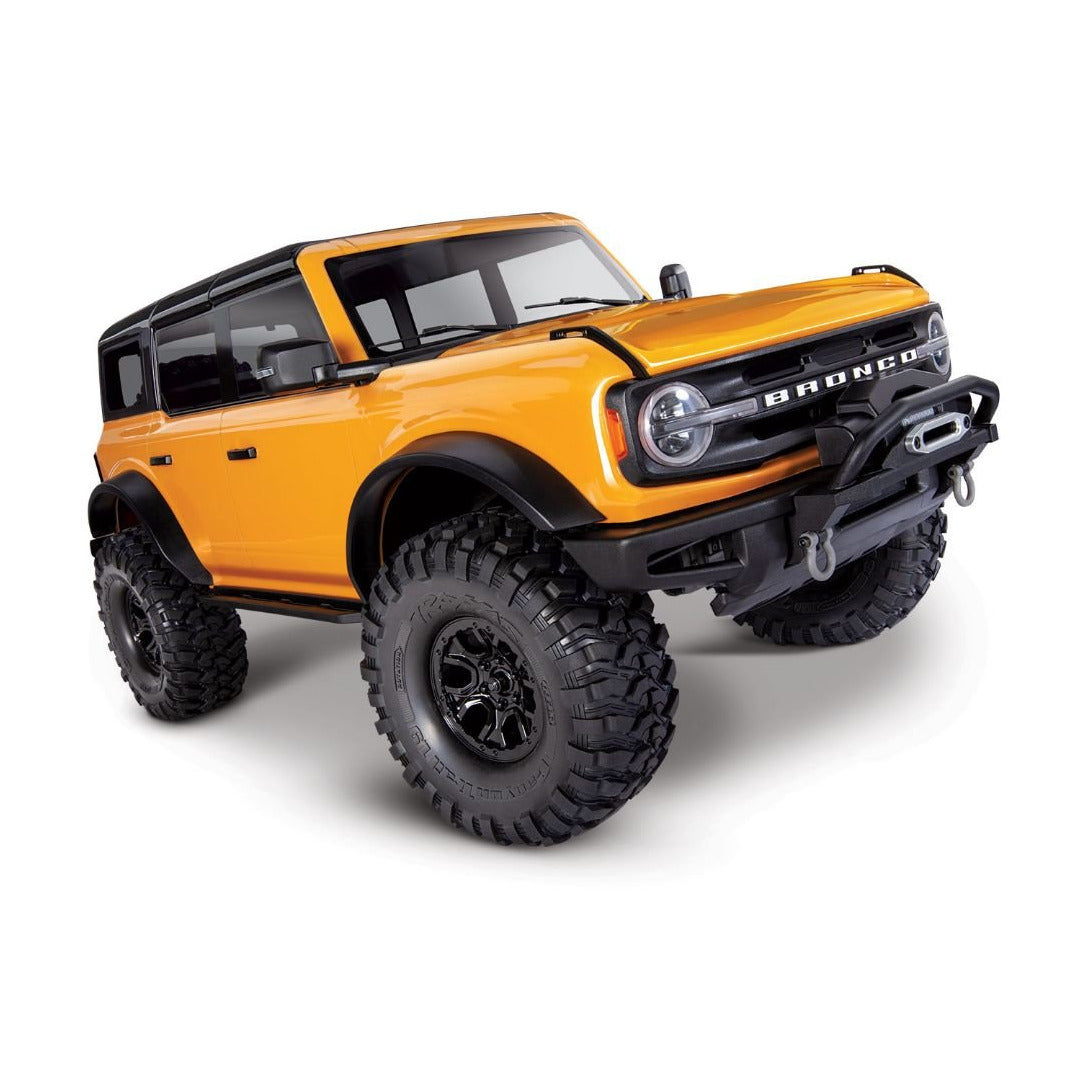

Traxxas TRX-4 Scale & Trail 2021 Ford Bronco 1/10 Crawler Orange


Price:
Sale price$699.99
No reviews

Description

2021 Ford Bronco TRX4 Scale and Trail Crawler

AN OFF-ROAD LEGEND RETURNS

The legend is back. After 25 years, the Bronco has returned as Ford's top-performing 4X4 and America's most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.

INNOVATION

Radically innovative technology combines with precision engineering to create a completely new breed of scale crawler... Only from Traxxas.

DETAILS

The TRX-4's extreme off-road capability lies in the technology beneath its rugged exterior.

Looking for more information? Check out Michael's review below!

Vehicle Specs

  • Length (overall): 22.98 inches (584mm)
  • Length (chassis): 21.59 inches (549mm)
  • Front Track: 9.78 inches (249mm)
  • Rear Track: 9.78 inches (249mm)
  • Ground Clearance: 3.14 inches (80mm)
  • Weight: 6.42lb (2.91kg)
  • Height: 9.4 inches (239mm)
  • Wheelbase: 12.8 inches (324mm)
  • Front Shock Length: 3.54 inches (90mm)
  • Rear Shock Length: 3.54 inches (90mm)
  • Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
  • Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
  • Front Tires: 4.64 x 1.89 inches (118 x 48mm)
  • Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
  • Approach Angle: 52°
  • Departure Angle: 49°
  • Breakover Angle: 58°
  • Hex Size: 12mm
  • Speed Control: XL-5 HV
  • Motor (electric): 21T Reverse Rotation
  • Transmission: 2-speed Hi-Lo, Remote Shifting
  • Gear Pitch: 32P
  • Differential Type: 4 Gear, Remote Locking
  • Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
  • Brake Type: Electronic "Hill Hold"
  • Drive System: Shaft Driven 4WD
  • Steering: Chassis Mounted Servo
  • Servo: 2075X Metal Gear
  • Transmitter: TQi 2.4 GHz 4-Channel Transmitter
  • Receiver: 6533
  • Skill Level: 1
  • Battery Tray: 158.75 L x 47 W x 23/26mm H

Motor Specs

  • Type: High-torque brushed motor
  • Size: 550
  • Weight: 390g (13.76oz)
  • Length: 3.071" (78mm) overall length, 2.25" (57mm) can length, 1.532" (38.9mm diameter)
  • Turns: 21T reverse rotation
  • Voltage: 16.8V

ESC Specs

  • Input Voltage: 6-7 Cells NiMH, 2-3s LiPo
  • Case Size: 1.23" W x 2.18" D x 1.04" H
  • Weight: 2.6oz (74g)
  • Motor Limit: 21-turns (550 size)
  • On Resistance Forward: 0.004 Ohms
  • On Resistance Reverse: 0.004 Ohms
  • Peak Current - Forward: 100A
  • Peak Current - Reverse: 100A
  • Braking Current: 60A
  • Continuous Current: 18A
  • BEC Voltage: 6.0 VDC
  • BEC Current: 1A
  • Power Wire: 14 Gauge / 5"
  • Input Harness Wire: 26 Gauge / 14.5"
  • Transistor Type: MOSFET
  • PWM Frequency: 1700Hz
  • Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
  • Thermal Protection: Thermal Shutdown
  • Profile selection: Sport Mode: 100% FWD, 100% brakes, 100% REV
  • Race Mode: 100% FWD, 100% brakes, no REV
  • Training Mode: 50% FWD, 100% brakes, 50% REV
  • Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
  • Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
  • Single-button setup: Yes, Traxxas EZ-Set

Features:

  • Officially Licensed 2021 Ford Bronco Body
    • Two-tone paint with black roof and clear windows
    • LED-ready headlights and tail lights with multi-function capability
    • Scale details
    • Black molded grille with white Bronco logo
    • Replica hood cowl w/ wipers and folding mirrors
    • Replica spare tire mount
    • Replica door handles
    • Tough PVC fender flares, wheel wells, and floor pans
    • Front and rear Bronco bumpers with skid plate and replica winch
  • Clipless Body mounting
    • Clipless design for smooth body appearance
    • Rugged internal body cage for added rigidity
      • Body details mount directly to internal frame
  • Trail-tuned XL-5 HV Waterproof Electronic Speed Control
    • Fully waterproof design
    • Five drive profiles
      • Sport Mode - forward / brake / reverse
      • Race Mode - forward / brake / no reverse
      • Training Mode - 50% forward / 100% brake / 50% reverse (patented)
      • Trail Mode - forward / brake / reverse / with trail-tuned drag brake in neutral
      • Crawl Mode - forward / instant reverse - no neutral with 100% hill holding brake
    • Traxxas EZ-Set one-button setup
    • Large, efficient heat sink
    • Wide voltage latitude 6-7 cell NiMH (7.2-8.4V) and 2-3s LiPo (7.4-11.1V)
    • Two stage low voltage protection (LVD)
  • Motor
    • Powerful Titan 21T reverse rotation motor with internal cooling fan
    • Precision, preset gear mesh adjustments
    • Motor retention separate from gear mesh
  • Portal Axles
    • Increase ground clearance
    • Eliminate torque twist
    • Steel gears
    • Improve axle geometry and reduce strain on driveshafts
  • Rigid Steel Frame
    • 1.5mm thick steel frame rails increase torsional rigidity
    • Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
    • Adjustable rear shock tower positions for SWB and LWB configurations
    • Rugged rock rails adjust for width
    • Wire routing clips integrated into frame rails
  • Drivetrain
    • Full-time shaft driven 4-wheel drive
    • Tough 6mm stub axles
    • Steel front CV driveshafts
    • Hardened steel rear axle shafts
    • Remote locking steel gear differentials with cable-actuation
    • Steel gear transfer case
  • Innovative Battery Compartment
    • Hinged battery strap allows quick and easy battery access
    • No pins to lose
    • Accommodates different height batteries
    • Accepts full-size long battery packs
    • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
    • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
  • Transmission
    • Two speed high/low range with remote shifting
    • Dual horizontal shafts
    • Twin friction plate slipper clutch
    • Easily removed for servicing
  • Steering
    • Chassis mounted 2075X metal gear digital servo
    • Superior 45° steering angle
    • Direct steering (no servo saver)
    • Steering geometry corrected for bump steer
  • Suspension
    • Front - 3 link with panhard
    • Rear - Triangulated 4 link
    • Heavy-duty rod ends with steel hollow balls
    • 5mm diameter steel link rods with 4mm threaded ends
  • Aluminum GTS Shocks
    • Oil-filled coilover GTS shocks
    • Silver-anodized aluminum bodies
    • Threaded bodies with collars easily adjust ride height
    • Silky smooth damping for the toughest trails
    • O-ring cap seal and dual X-ring shaft seals
  • Wheels and Tires
    • Replica black 2021 Bronco wheels
    • Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts
    • Trail tuned S1 rubber compound
    • 12mm steel hex
  • Transmitter
    • TQi 2.4GHz 4-channel transmitter
    • Traxxas Link enabled
    • Telemetry ready #6533 5-channel micro receiver with failsafe
    • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
    • Exclusive Cruise Control feature for extended trail driving
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle endpoints
  • Patented O-ring sealed watertight receiver box keeps the micro receiver dry
  • Sealed Ball Bearings
  • Hex hardware with rust-resistant black oxide coating

What's In The Box:

  • TRX-4, Ready-To-Race model
  • XL-5 HV waterproof electronic speed control
  • Titan 21T reverse rotation motor
  • TQi 2.4GHz radio system with cruise control
  • High quality maintenance tools

What You'll Need:

  • Batteries
    • TRX-4 accepts a wide variety of NiMH (4-7 cell) and LiPo (2s-3s) batteries.
  • Charger
    • Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (TRA2971).
  • AA Alkaline Batteries
    • Four AA alkaline batteries for the transmitter.
