Description

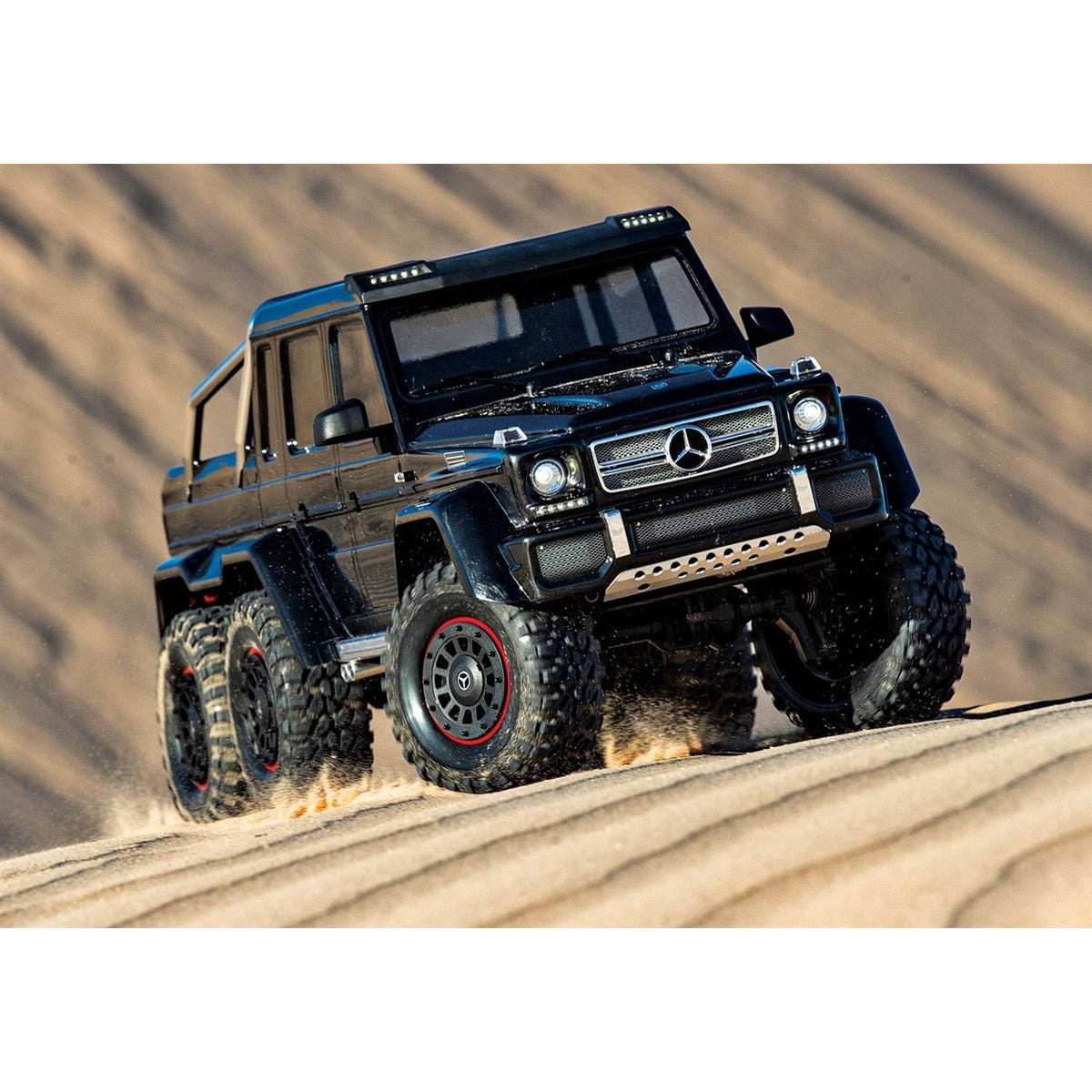

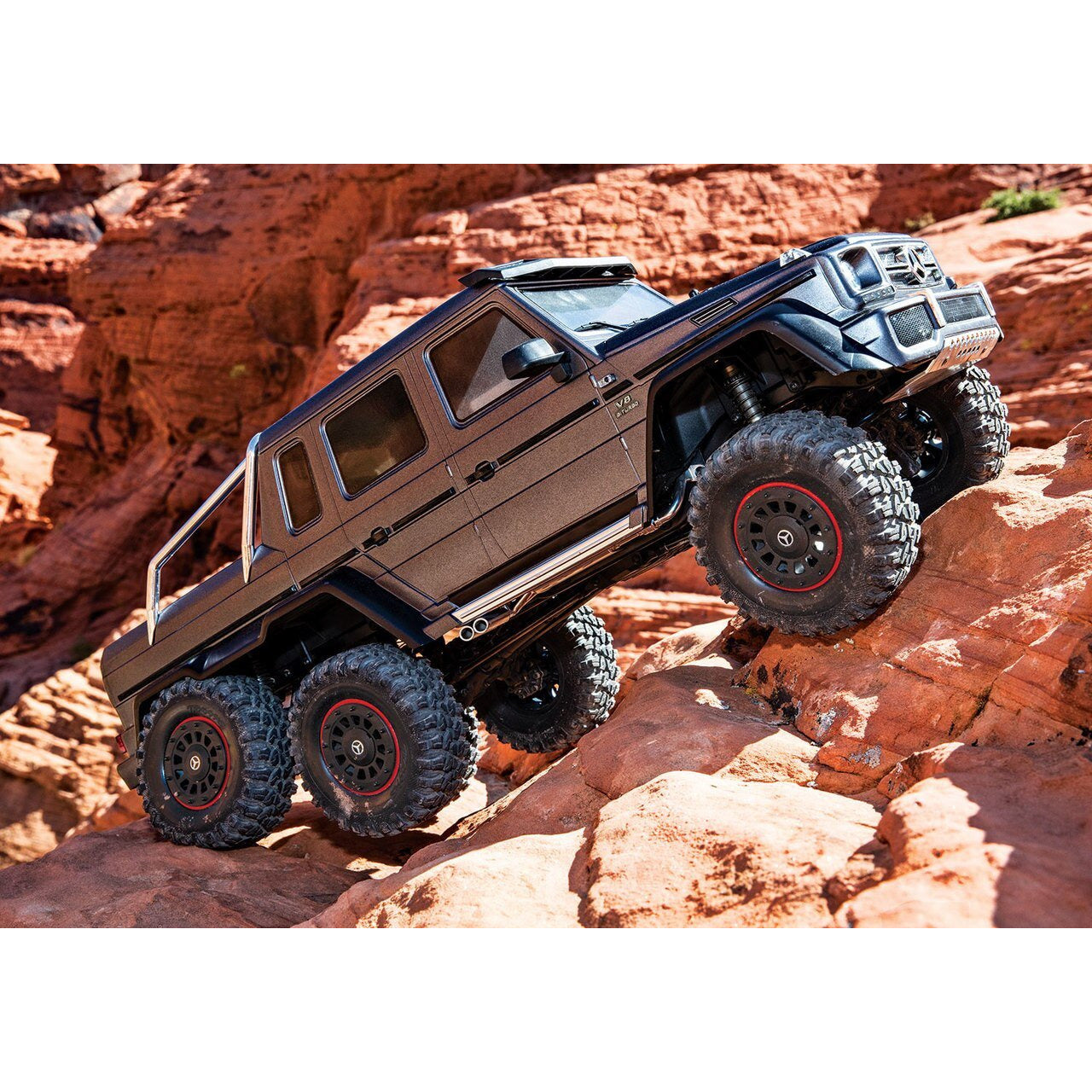

Mercedes-Benz G 63 AMG TRX-6 6x6 Scale and Trail Crawler
The Mercedes-Benz G 63 AMG 6x6 represents a singular vision to create the boldest and toughest all-terrain vehicle ever. Traxxas captures the spirit and no-compromise approach of the Mercedes-Benz G 63 AMG 6x6 with an officially licensed detailed scale replica built on the new TRX-6 platform. Six drive wheels, three T-Lock remote-locking differentials, portal axles, high/low transmission, 6 aluminum long-travel shocks, and a stunningly accurate body with brilliant LED lighting make this the most advanced and capable RC crawler ever to hit the trail.
SUPERIOR 6X6 DESIGN
A fully independent intermediate axle puts an extra set of driving wheels where you need them most to power over obstacles that would otherwise be impossible. 6-wheel drive also allows greater traction to attack steeper inclines and more grip over loose and rocky surfaces.
EXCEPTIONAL BODY DETAIL
The TRX-6 Mercedes-Benz G 63 AMG 6x6 faithfully reproduces one of the most exclusive and recognizable all-terrain vehicles ever created. Chrome accents, molded trim, and finely detailed lighting elements highlight the rich metallic paint. Traxxas' uncompromising attention to detail elevates the TRX-6 to the ultimate expression of beauty and brawn.
FACTORY-EQUIPPED LED LIGHTING
Rugged and fully-waterproof, the preinstalled LED lighting blazes a path through the darkest night. Accurate scale details abound in the finely crafted headlights, taillights, and side marker lights. Even the roof visor is fitted with brilliant LED lighting. A dedicated power supply regulates the voltage for bright, consistent, and efficient lighting.
INNOVATION
The TRX-6 defies physics with radically innovative technology combined with precision engineering to create a completely new breed of scale crawler.
DETAILS
The TRX-6's extreme off-road capability lies in the technology beneath its rugged exterior.
Vehicle Specs
- Length: 25.61 inches (651 mm)
- Front Track: 9.78 inches (249 mm)
- Rear Track: 9.78 inches (249 mm)
- Ground Clearance: 3.14 inches (80 mm)
- Weight: 8.8 pounds (3.99 kg)
- Height: 10.78 inches (274 mm)
- Wheelbase (to intermediate axle): 12.76 inches (324 mm)
- Wheelbase (to rear axle): 17.87 inches (454 mm)
- Approach Angle: 60°
- Departure Angle: 55°
- Breakover Angle: 57°
- Front Shock Length: 3.54 inches (90 mm)
- Rear Shock Length: 3.54 inches (90 mm)
- Battery Tray: 158.75 L x 47 W x 23/26 mm H
- Front Wheels: 2.2 x 1.02 inches (56 x 26 mm)
- Rear Wheels: 2.2 x 1.02 inches (56 x 26 mm)
- Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Hex Size: 12 mm
- Speed Control: XL-5 HV
- Motor (electric): Titan 21T Reverse Rotation
- Transmission: 2-speed High/Low, Remote Shifting
- Gear Pitch: 32P
- Differential Type: 4 Gear, Remote Locking
- Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
- Brake Type: Electronic "Hill Hold"
- Drive System: Shaft-Driven 6WD
- Steering: Chassis Mounted Servo
- Servo: 2075X Metal Gear
- Transmitter: TQi 2.4GHz 4-Channel Transmitter
- Receiver: 6533
- Skill Level: 1
Motor Specs
- Type: High-torque brushed motor
- Size: 550
- Weight: 390g (13.76oz)
- Length: 3.071" (78mm) overall length, 2.25" (57mm) can length, 1.532" (38.9mm diameter)
- Turns: 21T reverse rotation
- Voltage: 16.8V
ESC Specs
- Input Voltage: 6-7 Cells NiMH, 2-3s LiPo
- Case Size: 1.23" W x 2.18" D x 1.04" H
- Weight: 2.6oz (74g)
- Motor Limit: 21-turns (550 size)
- On Resistance Forward: 0.004 Ohms
- On Resistance Reverse: 0.004 Ohms
- Peak Current - Forward: 100A
- Peak Current - Reverse: 100A
- Braking Current: 60A
- Continuous Current: 18A
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Power Wire: 14 Gauge / 5"
- Input Harness Wire: 26 Gauge / 14.5"
- Transistor Type: MOSFET
- PWM Frequency: 1700Hz
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal Shutdown
- Profile selection
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode: 50% FWD, 100% brakes, 50% REV
- Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
- Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
- Single-button setup: Yes, Traxxas EZ-Set
Features:
- Officially Licensed Mercedes-Benz G 63 AMG 6x6 Body
- Scale details: chrome grille, chrome running boards, side mirrors, side trim, windshield visor, door handles, wipers, and dual side exhaust
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
- Chrome roll bars
- Chrome front and rear skid plates
- Installed LED Light Kit
- Includes headlights, tail lights, roof lights, and side markers
- Sealed waterproof design
- Color-coded power distribution block for easy and secure connections
- Traxxas LED lighting module
- Regulated to provide consistent and reliable power output
- Eliminates overheating, glitching, and other electronics issues
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake / no reverse
- Training Mode - 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode - forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode - forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6-7 cell NiMH (7.2-8.4V) and 2-3s LiPo (7.4-11.1V)
- Two stage low voltage protection (LVD)
- Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Innovative Chassis Design
- 1.5 mm thick steel frame rails increase torsional rigidity
- Extended wheelbase for added stability on inclines
- Intermediate drive axle to reduce high-centering
- Tough reinforced bumpers with integrated skid plates
- Chrome running boards adjust for width
- Wire routing clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 6-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front - 3 link with panhard
- Rear - Dual triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter lower steel link rods with 4 mm threaded ends
- Wheels and Tires
- 2.2" Beadlock-style wheels with hub inserts
- Unique 2.2" all-terrain tires with trail-tuned foam inserts
- Trail-tuned S1 rubber compound
- 12 mm steel hex
- Transmitter
- TQi 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- High 13ms frame rate and near-zero latency for responsive control
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
What's In The Box:
- TRX-6, Ready-To-Drive model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4GHz radio system with cruise control
- High quality maintenance tools
What You'll Need:
- Batteries
- TRX-6 accepts a wide variety of NiMH (4-7 cell) and LiPo (2s-3s) batteries.
- Charger
- Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (TRA2971).
- AA Alkaline Batteries
- Four AA alkaline batteries for the transmitter.
