Brushless 4WD Speed

Exploded Parts View for this Vehicle:

• Body Assembly
• Chassis Assembly
• Driveshafts Assembly
• Front Assembly
• Rear Assembly

Features

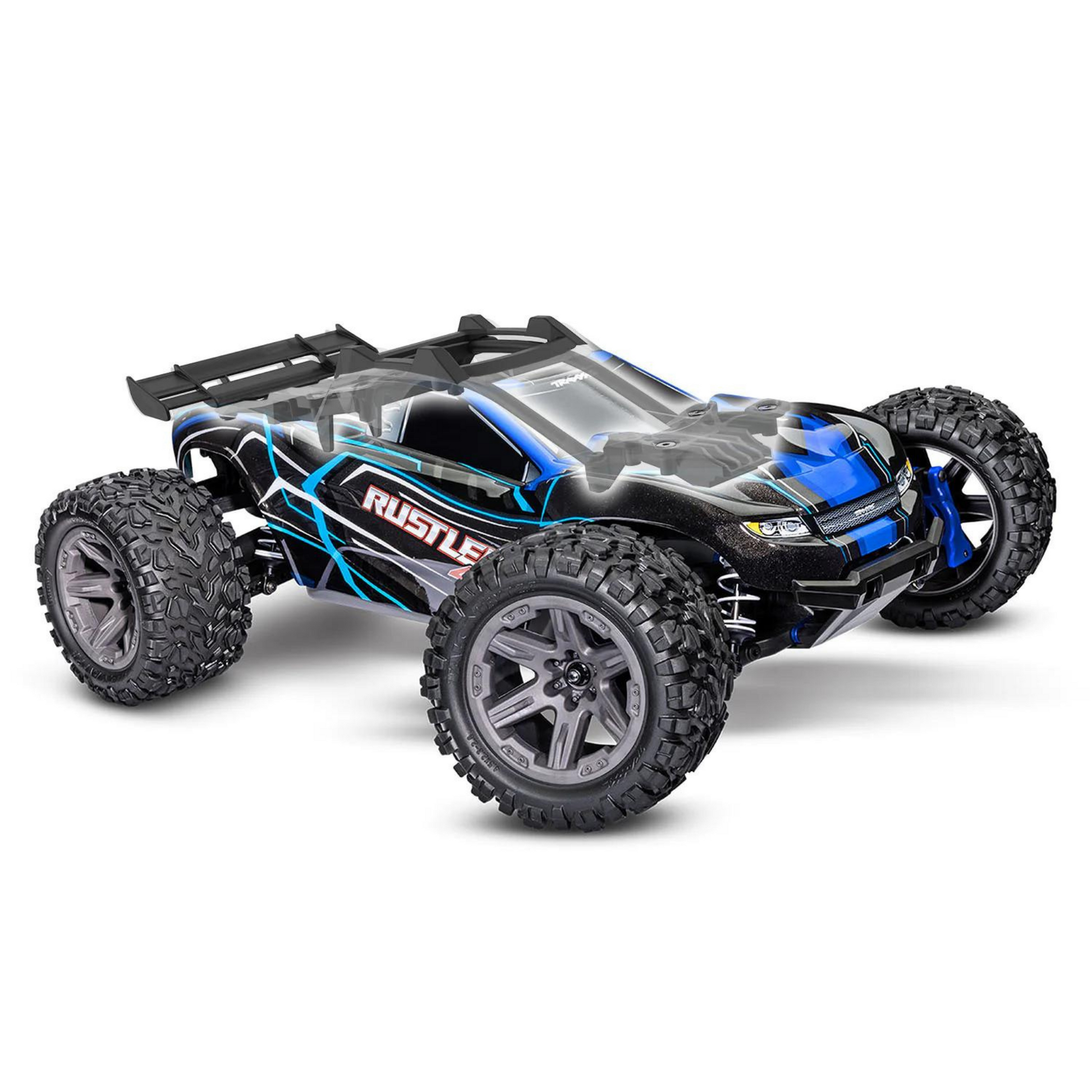

• Clipless Body

• Tough front and rear bumpers

• Reinforced inner cage

• Rugged roof rollover protector

• Holds tight for intense action

• Quick and easy removal

• Extreme Heavy Duty Upgrade Kit Installed

• Strengthened C-hubs, axle carriers, and steering blocks

• Extreme heavy duty driveshafts

• Oversize diameter

• 6mm axles

• Steel wheel hexes

• TQ 2.4GHz Transmitter

• Full-size 2-channel transmitter

• All-day comfort with precise long-range control

• BL-2s Waterproof Electronic Speed Control

• Heat sink accepts accessory cooling fan (TRA3340)

• Three Programmable Drive Profiles

• Sport Mode - Forward / Brake / Reverse

• Race Mode - Forward / Brake

• Training Mode - 50% Forward / Brake / 50% Reverse (patented)

• Traxxas EZ-Set one-button setup

• Built-in two-stage low-voltage detection for LiPo batteries

• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)

• LiPo battery packs: 2 cells (7.4 volts)

• 3300 kV Brushless Motor

• Integrated cooling fan

• Low-maintenance design

• Efficient ball bearings

• 3300 kV

• Steering

• Chassis-mounted TRA2056 servo

• Dual bellcrank design with integrated servo saver

• Chassis

• Modular composite tub design

• Secure battery hold-down latch

• Low-CG design

• High-angle bumpers

• Suspension

• Heavy duty suspension arms

• Oil-filled Ultra Shocks

• White powder-coated springs

• Drivetrain

• Full-time shaft-driven 4-wheel drive

• Oil-filled steel gear front and rear differentials

• Large 32-pitch spur gear

• Wheels and Tires

• 2.8″ gray RXT wheels

• All-terrain Talon EXT tires

• Sealed Ball Bearings

• Hex hardware with Rust-Resistant Black Oxide Coating

Specifications

• Length: 18 inches (457mm)

• Front Track: 12.94 inches (329mm)

• Rear Track: 12.94 inches (329mm)

• Ground Clearance: 1.10 inches (27mm) (center)

• Weight (no battery): 5.13 pounds (2.33kg)

• Height (overall): 6.35 inches (161 mm)

• Wheelbase: 11.6 inches (295mm)

• Shock Length (front): 3.45 inches (88mm) - Long

• Shock Length (rear): 3.98 inches (101mm) - XX-Long

• Speed Control: BL-2s electronic speed control

• Motor (electric): BL-2s 3300 kV sensorless brushless

• Overall Drive Ratio: 12.81:1

• Differential Type: Hardened steel bevel, sealed, limited slip

• Gear Pitch: 32

• Chassis Structure/Material: Composite tub

• Drive System: Shaft-driven 4WD

• Steering: Dual-bellcrank with integrated servo saver

• Tires: Talon EXT with foam inserts

• Tire Diameter: 4.5 inches (114mm) (front and rear)

• Wheels (front/rear): 2.8″ Gray RXT wheels

• Wheel Diameter: 2.8 inches (71mm)

• Radio System: TQ 2.4GHz (2-Channel)

• Servo: Waterproof digital #2056 servo (80oz-in torque)

• Skill Level: 1

• Battery Compartment (L/W/H): 162mm (6.38″) x 50mm (1.97″) x 25mm (0.98″)

• Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)

What’s Included

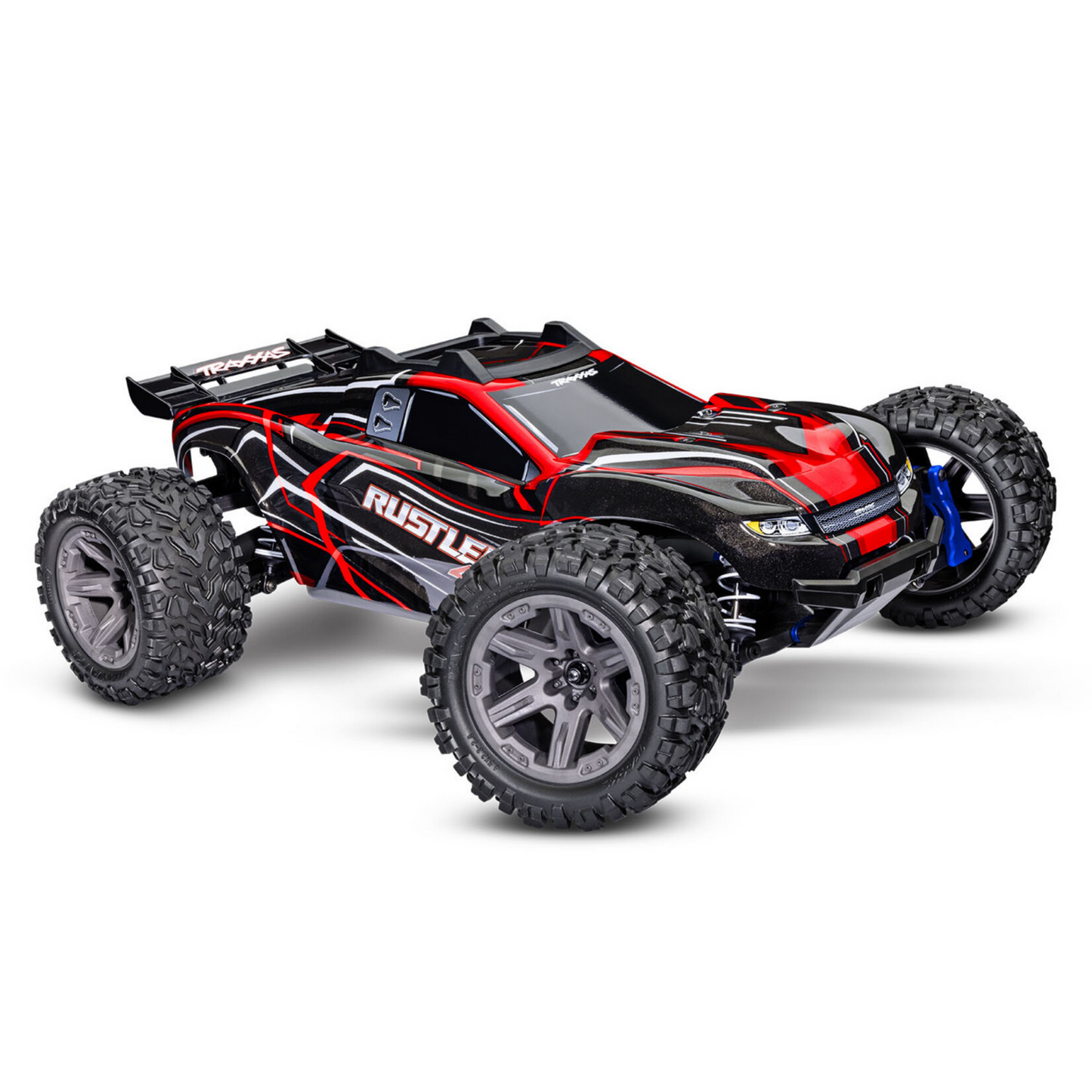

• Rustler 4X4 with BL-2s ESC and 3300 kV motor

• Quick Start Guide

• TQ 2.4 GHz radio system

• High quality maintenance tools

What You’ll Need

• Batteries: Rustler 4X4 requires a single NiMH or LiPo battery. See full list of batteries.

• Charger: Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance.

• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
