Description
The Team Associated RC10B74.2 Team 1/10 4WD Off-Road Electric Buggy Kit has been designed to reduce weight, lower the center of gravity and improve jump and bump handling. Building on every iteration of the RC10 platform, the B74.2 allows for higher stability and better predictability.
The RC10B74.2 and RC10B74.2D introduce molded gearboxes front and rear, which lower the center of gravity by removing weight from high points of the car. The modified differentials improve rolling speed through turns and increase stability on landings, allowing the buggy to corner faster on higher-grip carpet and clay tracks. The latest 13mm big bore shock technology from Team Associated is included, taking the RC10B74.2 to the next level in jump and bump handling performance. The introduction of gull wing front suspension arms and the inclusion of the LTC gear sets for the differentials make the RC10B74.2 platform easier and more predictable to drive on any track condition.

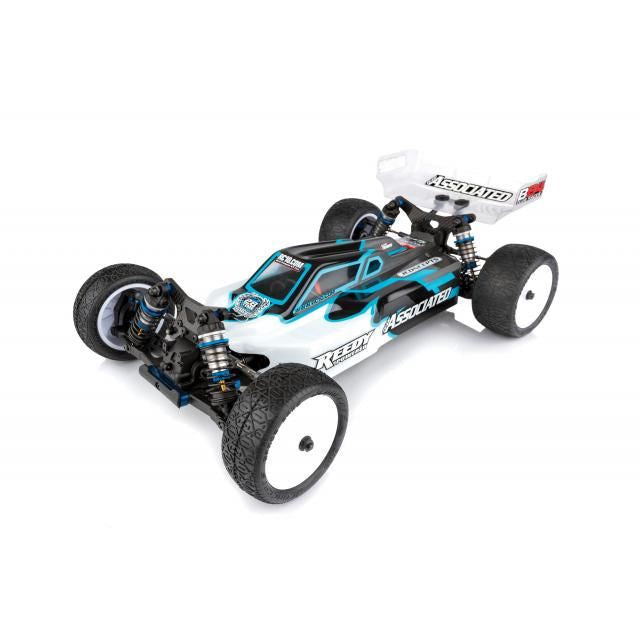

NOTE: Finished kit shown in photos is for illustrative purposes only. See the Needed to Complete list below for a full list of items required to complete the model.
Features:
Lightweight molded gearboxes both front and rear
Two fixed height front gearboxes allowing for +0 and +2mm differential height options
One rear gearbox with RC10B6-style inserts allowing 0, +1, +2, and +3mm differential height options
13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling
Gull wing front suspension arms and mating shock tower for a lower center of gravity and better steering predictability
LTC differential gear sets are included. That reduces binding under power, giving a more predictable power delivery
The battery hold-down system uses inserts to adjust weight bias. O-ring style battery strap with pull tabs
Larger 3.5mm turnbuckles with updated rod end style ballcups to increase durability and reduce bind in the suspension
Center bulkhead fan mount that mounts the fan above the motor for better cooling performance
-2mm wing mounts for use with slicks and low-profile carpet tires to further lower the center of gravity
+3mm aluminum steering rack for optimized bump steer at low ride heights
66mm Rear CVA drive shafts and axles for more on-power traction and a more predictable driving feel
2-pad high-load, high-capacity center slipper clutch with LCF pad material
Specifications:
Scale: 1/10
Drive: 4WD
Length: 395mm (15.55in)
Width: Varies
Wheelbase: Varies
Weight: Varies
Internal Gear Ratio: 2.50:1
Assembly Level: Kit
Needed to Complete:
1:10 scale electric motor
Electronic speed control
7.4V-7.6V 2S LiPo with shorty battery dimensions (standard or low-profile height)
Battery charger (suited for battery chosen above)
2-channel surface transmitter
2-channel receiver
Steering servo
Lexan(TM) specific spray paint for body
1:10 scale off-road wheels and tires
