Team Associated RC10SC6.4 Electric 2WD SC Team Truck Kit
Team Associated RC10SC6.4 Off Road 1/10 Electric 2WD Short Course Truck Team Kit. Based on the legendary successful RC10SC6.2 Short Course truck with a long list of updated features and designs to bring maximum capabilities, performance and adjustability out of this super versatile competition truck to match and fulfill all racers' needs. The RC10SC6.4 shares key components with the RC10T6.4, RC10B6.4, and RC10B74.2 Team Kits, making it easier than ever to run multiple classes at the same time! With 13mm big bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling, updated front ballstud mount and top plate with an angled steering system for improved steering consistency, updated 3.5mm heavy-duty ball cups and turnbuckles for maximum durability and updated longer 92.5mm CVA driveshafts that provides more rear grip! In addition, the included B6.4 (-1mm) kingpin offset steering and caster block set provides smoother and more predictable steering through the entire wheel throw, and the B6.4 adjustable height steering bellcrank and rack system provides optimized bump-steer at all ride heights and caster angles. With so many more features, tuning options and upgrades, we can all agree that the RC10SC6.4 is the ultimate kit option for all the competitive racers seeking high performance and quality!

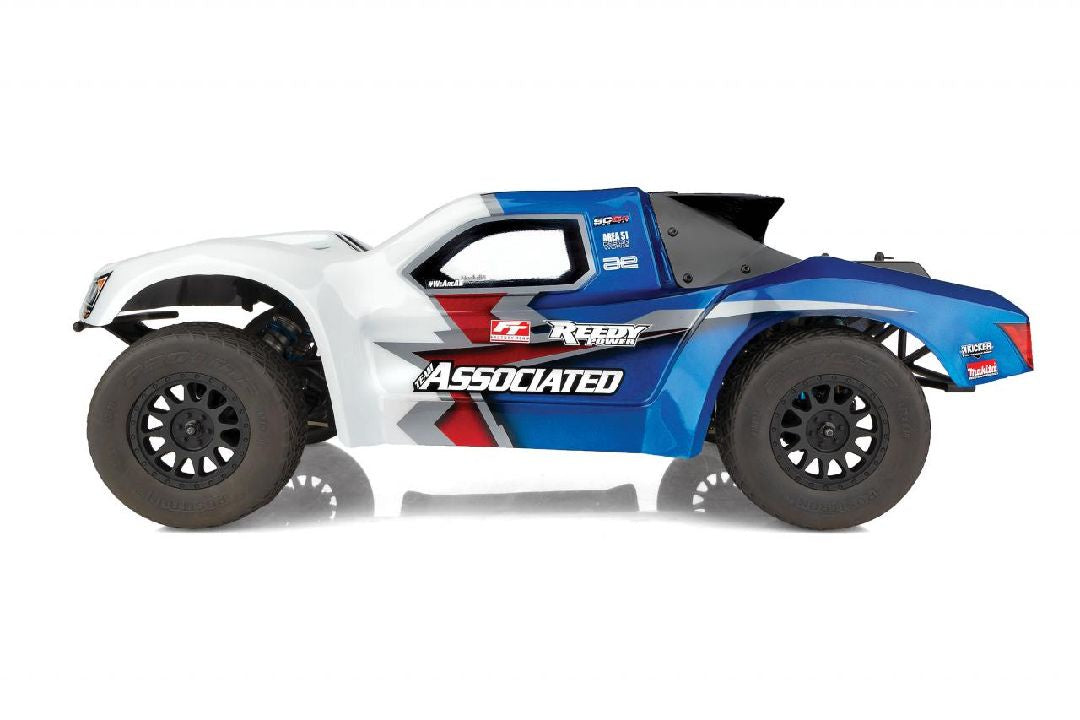

NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Updated Features:
- 13mm big bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling
- 13mm machined shock pistons
- Updated front ballstud mount and top plate with an angled steering system for improved steering consistency
- Updated 3.5mm heavy-duty ball cups and turnbuckles for maximum durability
- Updated rear suspension with wider C and D mounts from the RC10B6.4 series
- Updated longer 92.5mm CVA driveshafts for more rear grip
- 7.0mm blue aluminum rear clamping hexes with laser etching
- Updated chassis side rails with the RC10B6.4 fan mount system
- Updated short course truck length aluminum chassis with 22.5 degrees kick-up to complement the updated front-end geometry with updated shape to reduce chassis scrub on the track surface
- (20, 22.5 and 25) degrees molded bulkheads are included for a complete range of caster and kick-up options
- B6.4 adjustable height steering bellcrank and rack system for optimized bump-steer at all ride heights and caster angles
- Includes B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw
- Aluminum RC10B6.4 ESC mounting tray positioned forward in the chassis and a wider footprint to fit electronics, resulting in an increased forward weight bias
- Factory Team RC10B6.4 11g aluminum ESC tray
Specifications:
- Scale: 1/10
- Power Plant: Electric
- Length: Varies
- Width: Varies
- Height: Varies
- Wheelbase: 325mm (8.86in)
- Gear Ratio: 2.6:1
- Drivetrain: 2WD
- Surface: Off-Road
- Completion level: Unassembled
Includes:
- (1) Team Associated RC10SC6.4 Off Road 1/10 Electric 2WD Short Course Truck Team Kit
Needed to Complete:
- (1) Steering servo
- (1) 2-channel transmitter & receiver
- (1) 1:10 scale 540-size electric motor & ESC
- (1) 2S LiPo battery
- (1) Polycarbonate SC Truck body
- Paint for polycarbonate body
- Wheels & Tires
- Assembly Tools & Tires CA glue
