Description

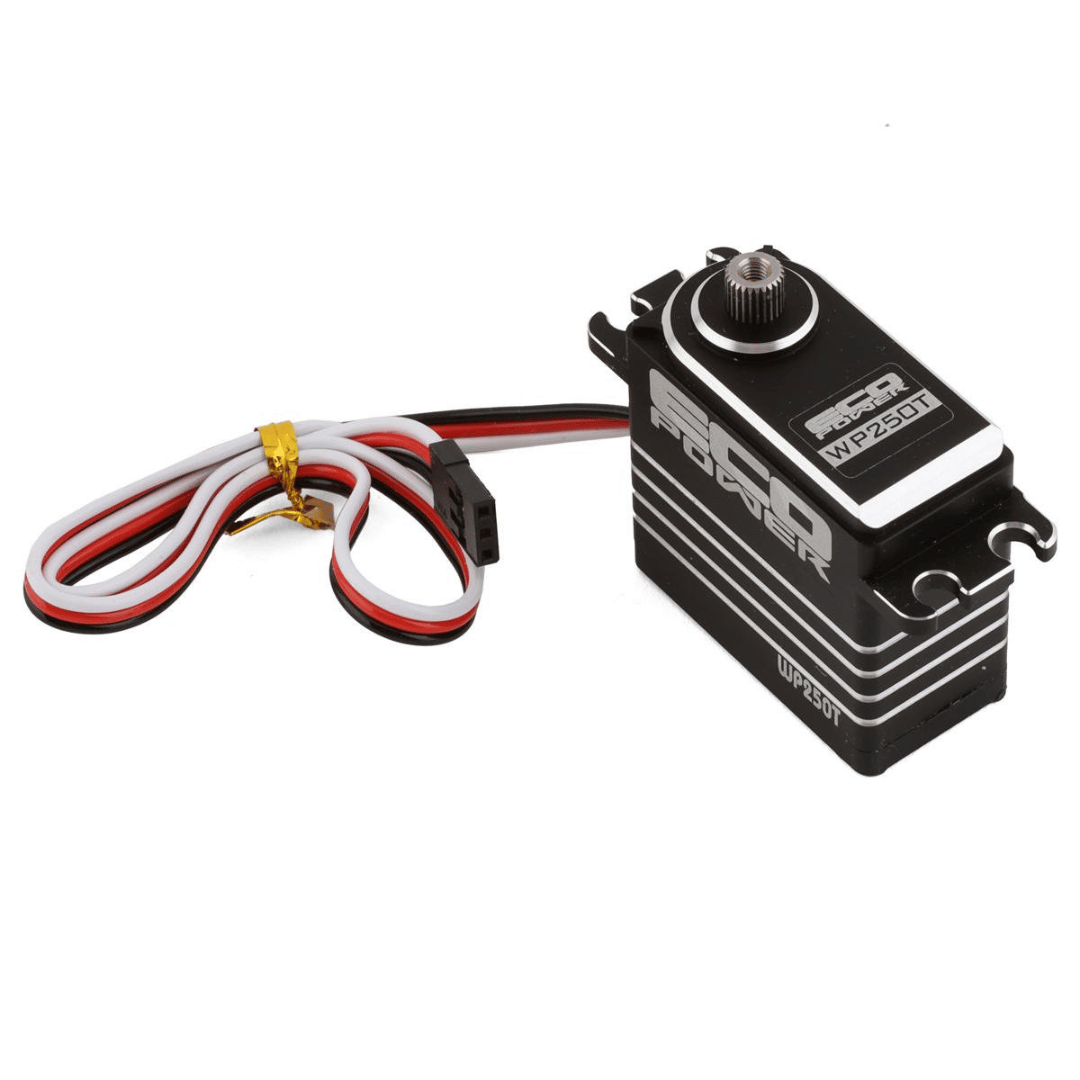

EcoPower WP250T High Torque Waterproof Brushless Servo
EcoPower WP250T Brushless Waterproof High Torque Metal Gear Servo was developed specifically for crawlers, bashers and RTR applications. Heavy 2.2 class rigs, U4 racers, lightweight and heavyweight 1.9 comp builds and ultra-detailed scalers can all benefit from the feature set that the WP250T delivers. Pushing over 681 oz-in of stump-pulling torque and .12 speed at 7.4V, the WP250T will move heavy 2.2 tires with ease, no matter how much weight you put in them.
All this power means nothing without durability. By combining this incredible power with a specialized gasket system, the WP250T is waterproof up to 1-meter and will stand up to anything mother nature can throw at it. A full steel gear train, 25T output shaft and full aluminum machined heat sink case make the WP250T extremely tough. The WP250T delivers the excessive power that crawlers demand - with durability and reliability that make it a must have servo for crawlers that expect the most from their rigs.
Features:
- Ideal for any 1.9 to 2.2 Crawlers and 1/10 or 1/8 Off-Road
- Waterproof up to 1 meter
- 574 oz-in of torque @ 6.0V, and .14 transit speed
- 681 oz-in of torque @ 7.4V, and .12 transit speed
- 758 oz-in of torque @ 8.4V, and .10 transit speed
- Brushless motor
- High voltage circuitry
- Full steel gears for maximum durability and reliability
- Full aluminum black anodized heat sink case for enhanced heat dissipation
- Dual ball bearings
- 280mm servo lead
Specifications:
Servo Model | WP250T |
Recommended Application | 1/10 to 1/8 Scale Crawler & Bashers |
Operating Voltage | 4.8V - 8.4V |
Operating Temperature | 14° to 140° F (-10 to +60° C) |
Operating Speed @ 6.0V | 0.14/60° sec |
Operating Speed @ 7.4V | 0.12/60° sec |
Operating Speed @ 8.4V | 0.10/60° sec |
Dynamic Torque @ 6.0V | 574 oz-in (41.3 kg-cm) |
Dynamic Torque @ 7.4V | 681 oz-in (49.0 kg-cm) |
Dynamic Torque @ 8.4V | 758 oz-in (54.5 kg-cm) |
Motor Type | Brushless Digital |
Output Shaft | 25 Tooth |
Gears | Steel |
Weight | 82g |
Pulse/Frequency | 1520 / 330hz |
Dimensions | 40.2x20x44.5mm |
Length (Bottom to Mount) | 27.5mm |
Includes:
- (1) WP250T Brushless Waterproof High Torque Metal Gear (High Voltage) Servo
- Composite servo horns
- Mounting Screws
NOTE: Requires a servo extension lead for a drop-in TRX-4 fit.
