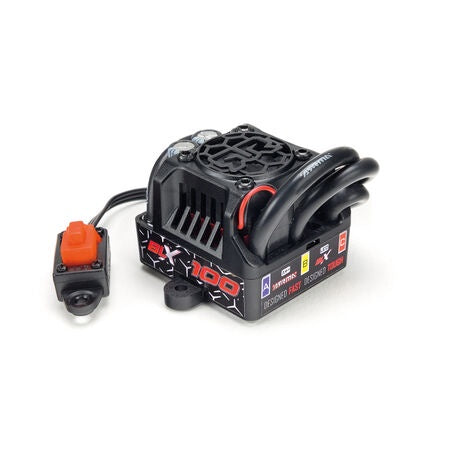

ARAM0160 BLX100 Brushless 10th 3S ESC: 4x4


Price:
Sale price$149.99

Description

The BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.

Features

Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

SPECIFICATION

  • Battery usage: 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH
  • Low Voltage Cut-Off (LVC): 3.4V per cell
  • Thermal Protection Temperature: 125°C / 257°F
  • Over-Voltage Protection: Over 12.6V
  • BEC Voltage: 6V
  • BEC Current: 4A
  • ESC Length: 43mm / 1.69"
  • ESC Height: 34mm / 1.34"
  • ESC Width: 54.5mm / 2.15" (Including hold-down tabs)
  • ESC Weight: 120g / 4.2oz
  • Receiver Wire Length: 170mm / 6.70"
  • Battery Wire Length: 125mm / 4.92"
  • Motor Wire Length (Including Connector): 200mm / 7.87"
  • Switch Length: 110mm / 4.33"
  • Switch Width: 12.8mm / 0.5"
  • Switch Height: 18mm / 0.71"
  • Motor Bullet Connector Size: 4mm / 0.16"
  • Wire Specifications: 12AWG
  • ESC Battery Connector Type: EC5
