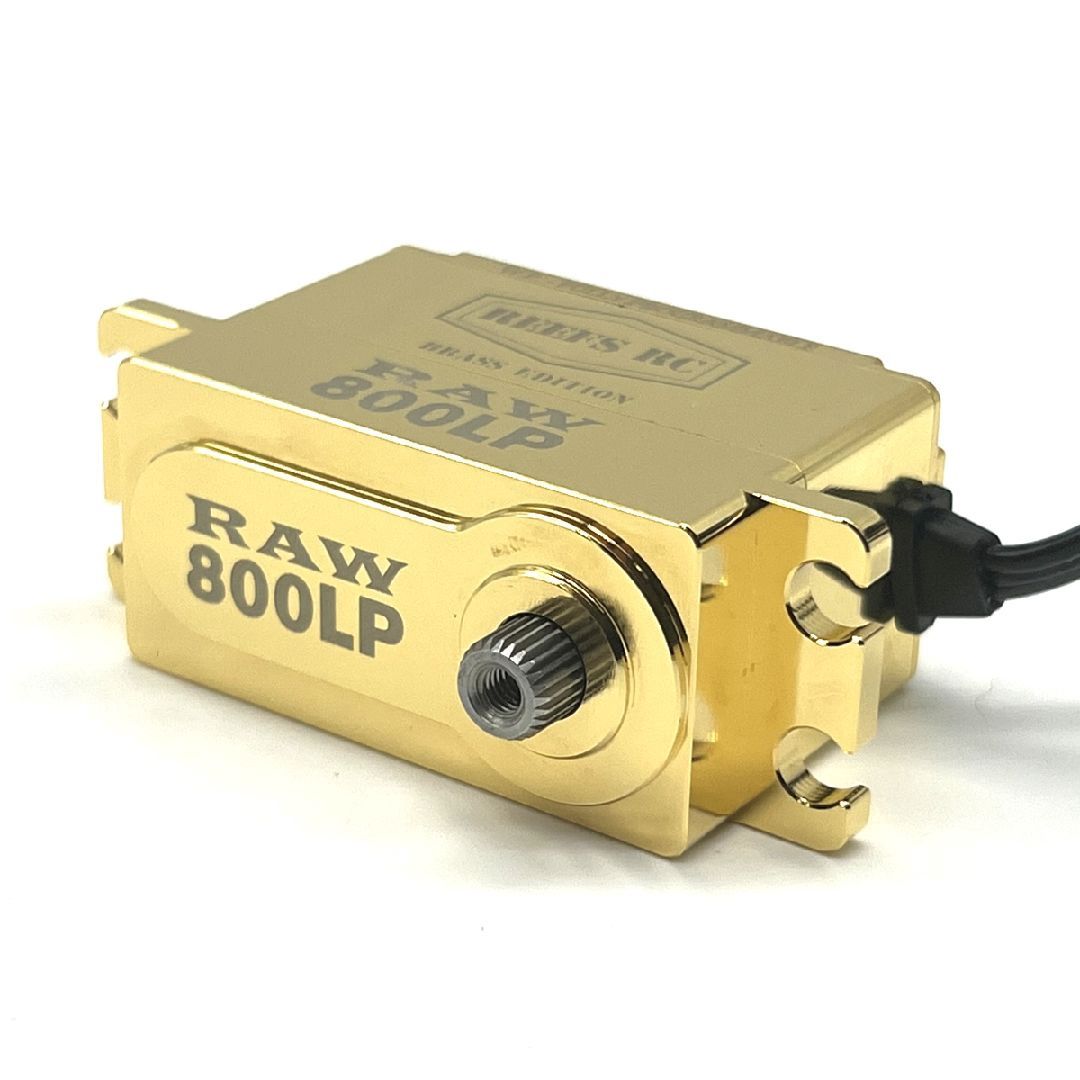

Reefs RC RAW800LP Digital Waterproof Low Profile Brushless Servo (High Voltage) (Brass Edition) - SEHREEFS160

Servo Overview:

This is the RAW800LP Digital Waterproof Low Profile Brushless Servo from Reefs RC, designed for high-torque, high-speed performance in demanding RC applications. With its fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from crawlers to boats. Additionally the brass outer case construction provides a significant increase in weight, ideal for rock crawler applications.

Features:

• 4-Pole brushless motor
• "Submarine Waterproof" with 7 point seals
• Low profile design
• Magnetic angle sensor
• Internal steel gears
• CNC Brass Casing with "ULTRA" finish

Specifications:

• Speed:
• @6.0V: 0.12sec/60°
• @7.4V: 0.10sec/60°
• @8.4V: 0.09sec/60°
• Torque:
• @6.0V: 635oz-in (45.73kg-cm)
• @7.4V: 715.0oz-in (51.49kg-cm)
• @8.4V: 800.0oz-in (57.60kg-cm)
• Dimensions: 1.6x0.79x1.16in (40.8x20.2x29.5mm)
• Weight: 4.23oz (120.1g)
• Operating Voltage: 4.8-8.4V
• Spline: 25T
• Waterproof: Yes

Includes:

• (1) RAW800LP Digital Waterproof Low Profile Brushless Brass Servo
• Assorted Servo Horns and Mounting Hardware
